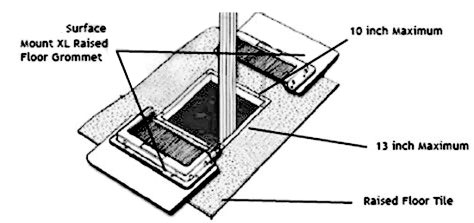

SURFACE MOUNT RAISED FLOOR Grommet

Upsite Technologies VITIAN Surface Mount Raised Floor Grommets are designed to seal a variety of existing raised floor tile cutouts and allow flexibility of removing tiles without capturing cables. Based on measurements at multiple data centers, 50-80% of valuable conditioned air is not reaching the air intake of IT equipment due to unsealed floor openings. This lost air, known as bypass airflow, contributes to IT equipment hotspots, cooling unit inefficiencies, and increasing infrastructure costs. vitian products specifically address bypass airflow and its detrimental effects on data center cooling.

Note: The Raised Floor Grommets are sold in a pack of 10.

Benefits of VITIAN Grommets

•Increases existing cooling unit capacity

•Reduces the need to purchase additional cooling units

•Improves equipment reliability and extends equipment life

•Increases static pressure under the raised floor and improves cool air delivery through perforated tiles and floor grates

•Facilitates Cold Aisle/Hot Aisle best practices

VITIAN Features:

•The Surface Mount Grommets facilitate re-cabling and allows tiles to be moved without capturing cables.

•Integrate with the raised floor static dissipation system, providing 1 GigaOhm of resistance.

•Contain no loose or partially fastened parts, which can become separated or fall through the raised floor.

•Impact resistant and durable.

•100% bypass-airflow sealing in areas undisturbed by cable penetrations at static pressures up to 0.10 inches of water column

•100% bypass-airflow sealing with four ½ inch cables penetrating the Grommet at the static pressure required to cool up to 3 kW/cabinet

•96% bypass-airflow sealing with four ½ inch cables penetrating the Grommet at a static pressure of 0.10 inches of water column

FIRE-RESISTENT ABS Finish: Black

Floor Mounting System: Custom adhesive mounting kit consisting of:

Single-sided, pressure sensitive foam with adhesive backing

Double-sided, pressure sensitive foam with adhesive backing

Polyethylene foam buttons for static dissipation

All foam components are non-particulating

Size：278mmX105m
