Plastic base can be used: HPL, Woodcore Raised Access Floor System, ECO chipboard and other non-locking screws on the floor.

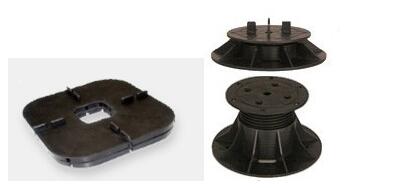

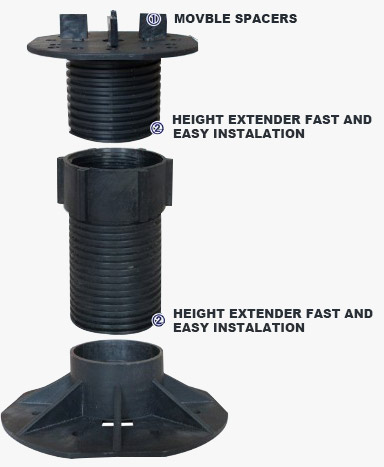

Pedestal in solid design, whetherproof material (Polypropylen = PP +TV20). The used plastic material does not contain any plastcizer. Thus the unit is 100% compatible with any other building materials such as bitumen, PVC, PIB, ECB, elastomer plastic material. The pedestal VTP50/75 is of special foot fall sound damping. Units can be stacked, bottom and top part are keyed- solid connection. Rotating either bottom or top enables easy height adjustment from 50-75 mm. For leveling shims can be supplied, too. and can be used with our pedestal called VTP 50/75. In addition to VTP 50/75 exists a special threated part called VT 60/105。

If you need a special size customer base of plastic, just need you to make your request, VITIAN company can be customized to your request to you, to your satisfaction.

TYPICAL USE

A critical component of the well-established, loose-laid pedestrian deck assembly, the Atlas Rubber Pedestal System ™ is engineered to provide a durable, inexpensive, low-profile, support for elevated slabs, which are most commonly masonry. such as wet-cast, high-density, pressed concrete pavers. Made from recyclable SBR rubber, the lightweight, malleable, stackable and reusable Atlas Rubber Pedestal System ™ can ensure noise reduction, improved drainage,and precise and consistent joint spacing, as well as reduce injuries commonly associated with cracked setting beds and displaced slabs.

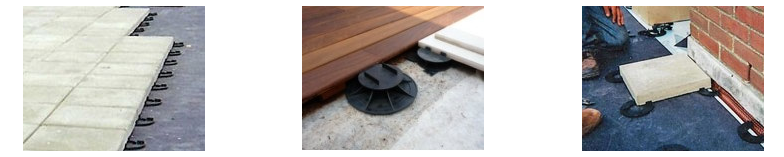

Indoor and outdoor use as the suports for materials such as stones,tiles,decking,solar panels,wpc

boards,utility ducts,pipes,......in the ares of roof terraces,gardens terraces,water

features,swimming pools,as well as heavy industrial and corrosive environment areas of

petroleum,chemical,eletroplating,waste water treatment,paper making,pharmacy industries...

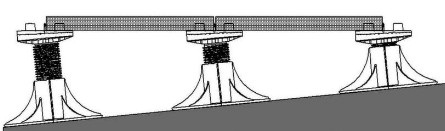

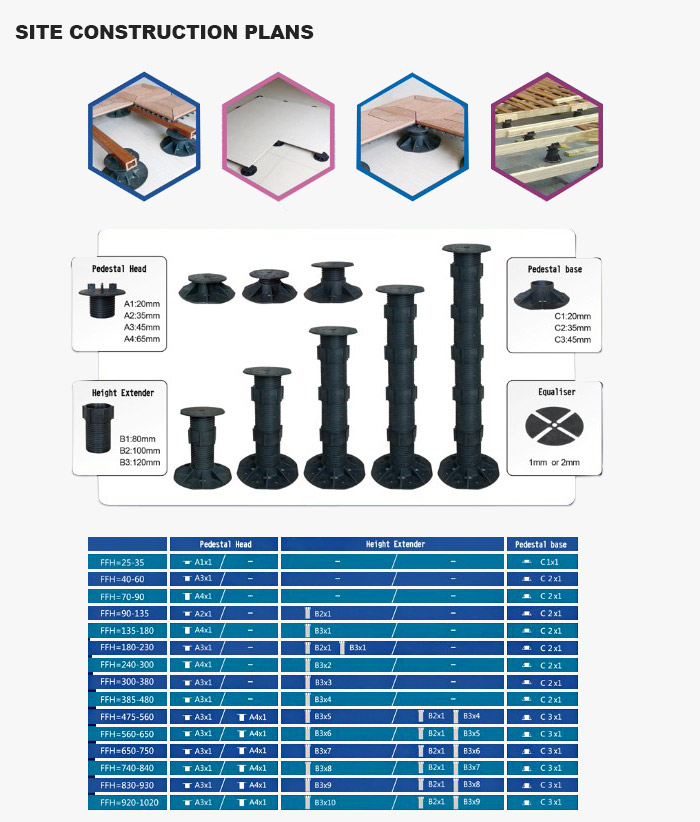

Height adjustable from 25 mm to 1020mm Material:PP or ABS+PC

Flexible rubber pedestals and spacers can accommodate the subtle freeze-thaw expansion which most often occurs with concrete pavers, while at the same time protecting the materials below as valuable cushioning takes place.With a well-respected, long-term performance record, rubber pedestals, as well as loose laid systems in general, also facilitate inspections and access to conduits below and enables membrane leak repairs at a much lower cost, as are maintenance costs in general. Attractive recreational areas can easily be created on plazas, patios and roofs at a relatively low cost and low weight as compared with typical setting bed applications

SUBSTRATES / LEVELING

The typical substrate is an Atlas rubber pedestal, shims or protection board. Below this may be a 9”x 9” piece of the waterproof membrane, proper and high-density: drainage mat, geo-tech fabric, extruded polystyrene, concrete blocks and prefabricated stands (by others). Height adjustments can be achieved by utilizing these or other appropriate products, or by stacking the pedestals. Expect minor settling. We invite you to discuss options with our Technical Department.
