Description

Most raised floor systems include pedestals,stringers,screws and sometimes include sockets and lifters that acorrding to the customers requirements.

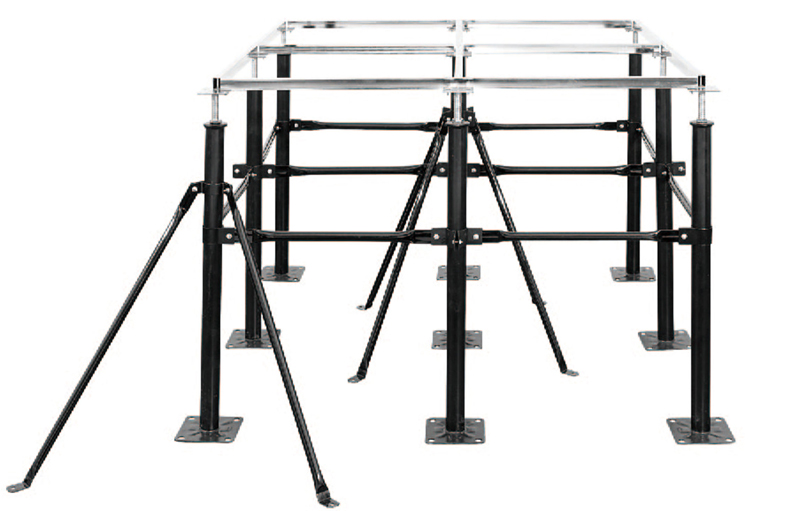

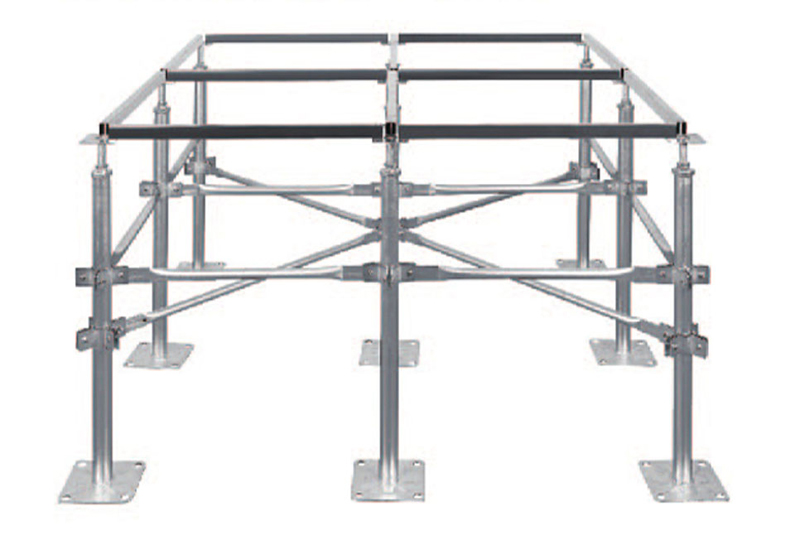

Tubular pedestal is including top support, under support, stringer of three parts, support adjustable range is ± 20mm, the stringer close to the end of the bump in support on the panel slot, to ensure accurate positioning of the pad spacing, consistent without adjustment, flooring convenient, fast, grid stability.

Stringer cross-section size and shape have a variety of options to meet the light load, medium load, heavy load demands of different places. Support on the panel area, there is shock absorption pad positioned in the lower floor load requirements place, you can not use stringer to install support legs.

Specification sheet of standard pedestal :

Other height could be customized. Standard Stringer SPEC: 570x21x32mm
