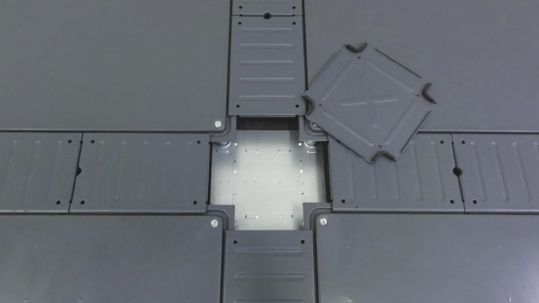

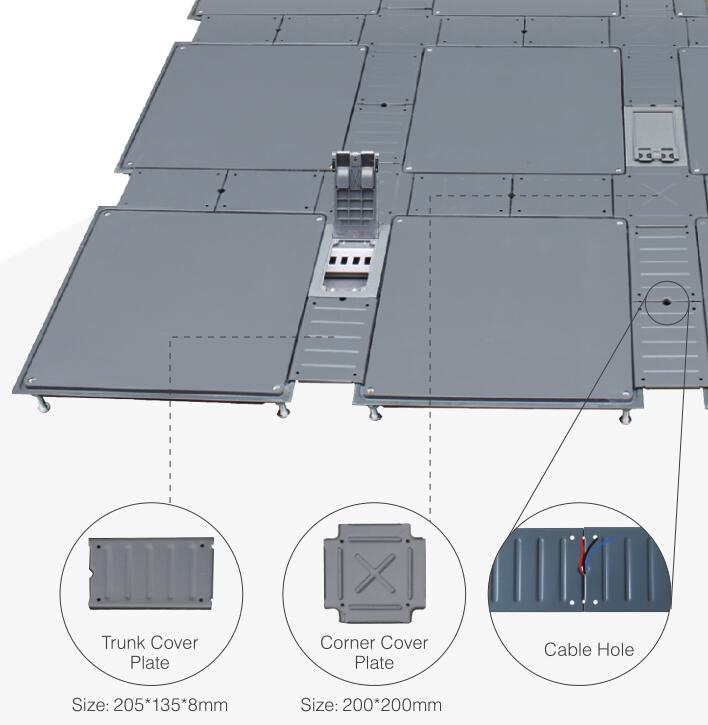

1. Main components: panel, trunk cover plate, corner cover plate, corner bottom plate;

2. Optional accessories :Electrical outlet,bottom trunk ,outlet;

3. The adjustment of the floor 35mm—150mm, the best height is 50mm, save the space of the room.

OA500 network floor system can be arranged in multiple options around YK50-C panels. Strong and weak currency can be marked and seperated which is convenient both for maintance and office space saving. If need reconstruction, just need to open related slots but not the OA500 network panels, thus be convenient, prompt and cost saving.

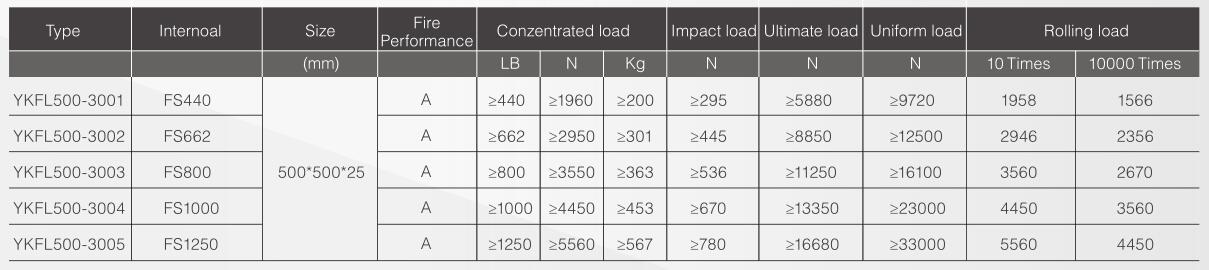

Technical Specification
