Characteristics

1. Full steel structure,high-quality in filed,strong bearing capacity,good fireproof performance;

2. Panel surface is painted electrostatically with conductive epoxy resin, wear-resisting, corrosion;

3. Surface wilding accpet kinds of covering tiles carpet or PVC and so on.

Product Structure:

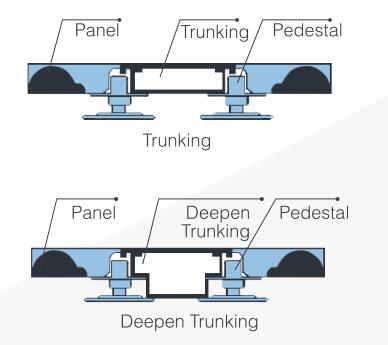

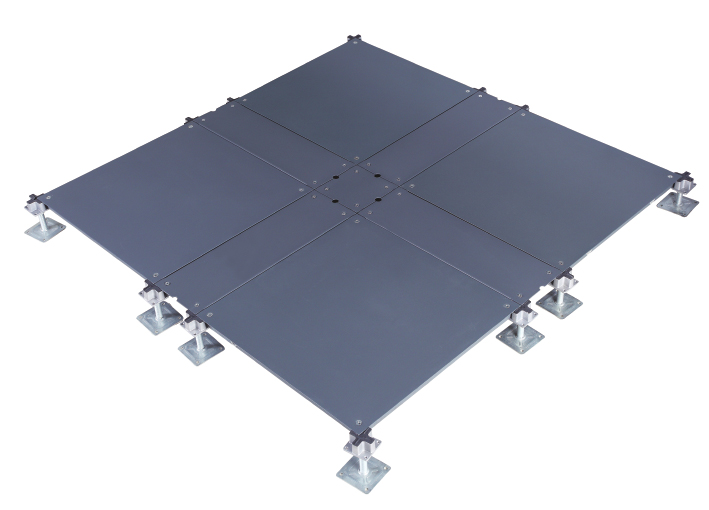

OA500 Trunking Net Floor system has trunking around each panel. The panel is supported by 4screws connected with galvanized steel base. Panel height can be adjusted from the top panel. Each trunk has an outlet hole offering maxmium solution of wiring. Strong and weak currency can be marked and separated which is convenient for maintance and reconstruction, also saving building space. If need reconstruction, just need to open related slots but not the OA500 network panels, thus be convenient, prompt and cost saving.

Product Feature:

1.Suitable for standard OA500 network flooring with flexiable and convenient installation options.

2.Standard mould-made panels and slots with precise dimension accuracy and great interchangeability.

3.Strong and weak currency markble and seperatable, convenient for maintance.

4.Outlet holes available at each slot, offering maxium wiring options.

5.More Flexiable Layout plans meeting different requirements.

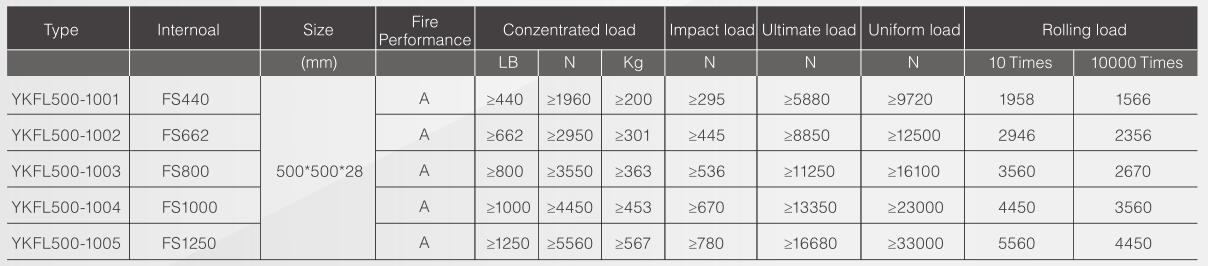

Loading Chart:

Characteristics

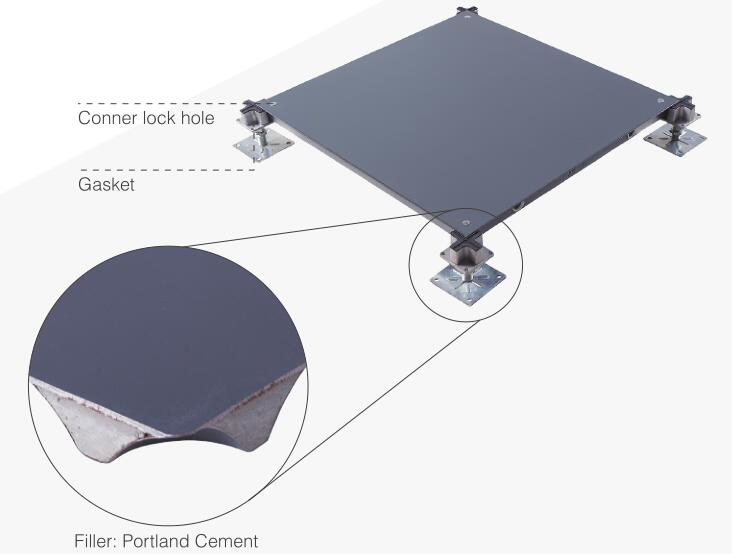

1. Corners keyhole design, with cast aluminum orgalvanized bracket;

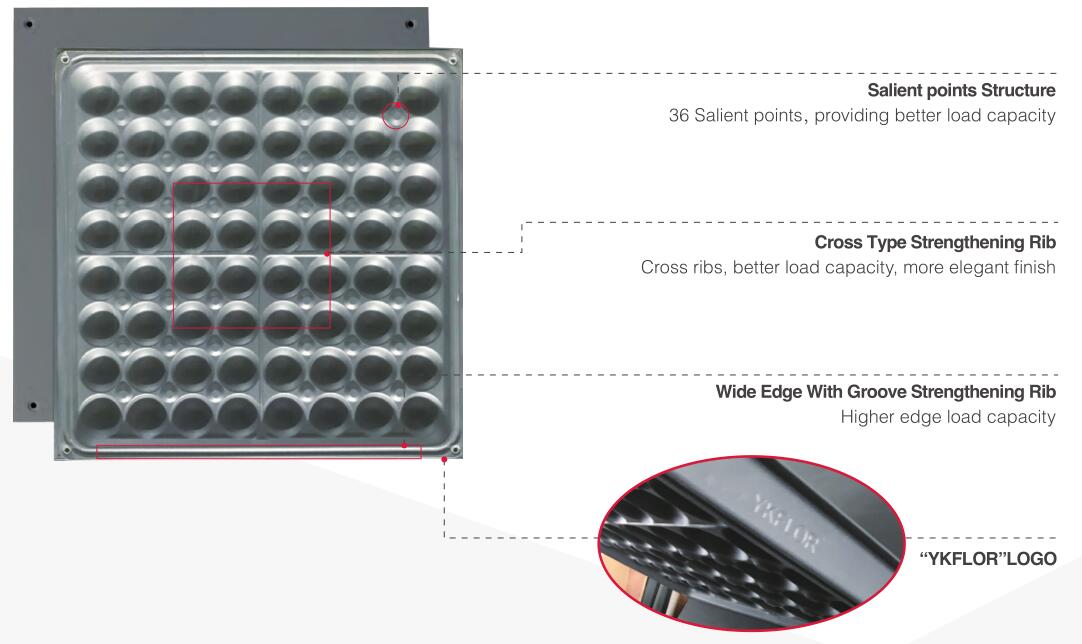

2. OA panel is made of steel plate, top to be SPC Cmaterial, bottom to be ST 14 material, after pan formed and joined together by resistance welding, the panel is coated with epoxy paint, then infilled with Iight cement;

3. Front and rear steel plate stamping and welsing, shellfor phosphating and spaying plastics treatment.

Technical Specification

A workstation can be easily and quickly relocated with cable management without disruption. Convenient for connecting wire at any point without cutting floor. Suitable for all kinds of plug socket terminals. Adjust- able wire -connected location.

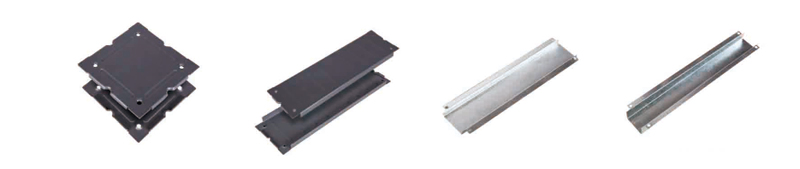

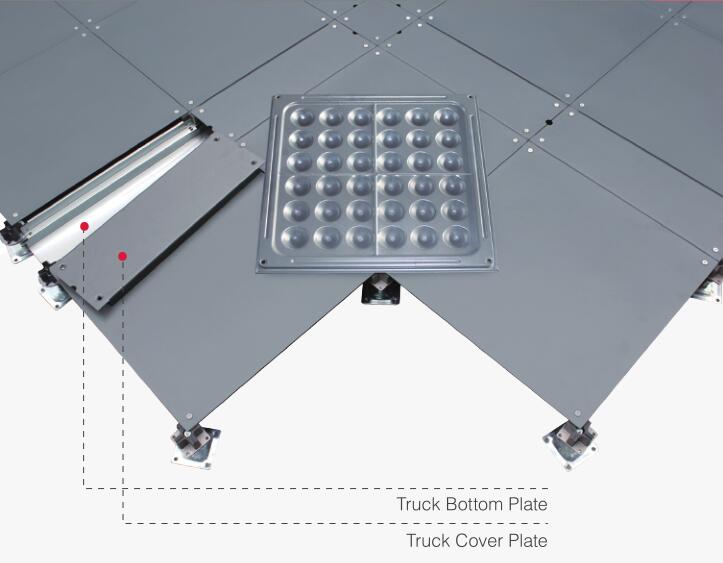

Trunking for wires is one of the advantages of YKFLOR trunking floor. Cover flank covers on basic panel edges after lying wires in trunks. Each panel stands separately, making in very convenient to lie flank cover before or after wires.
