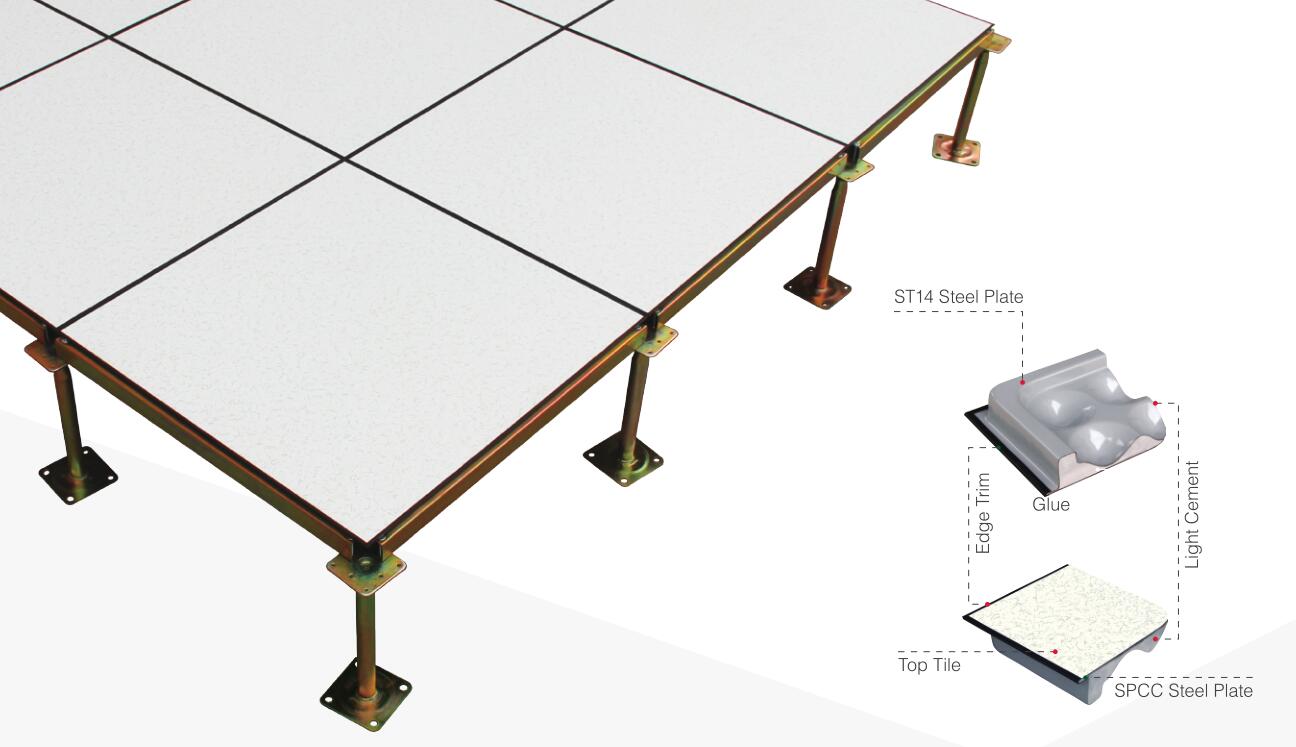

The raised access floor system is composed of floor, stringer, and supports supplying high load & antistatic working surface and room for laying all kinds of wires at lower place. It is permitted to install wing box and ground plug on the ground. Wires can be placed under the floor and height of support can be adjusted at will Connect the beam and support whose height can be adjusted into a film upper system. Insect floor into panes which are enclosed by stringers.

Antistatic raised access floor in all steel company has the patent design “gridding strengthening”, reshaping many times and high flatness and be superior to factories 10-20%.

Technical Specification

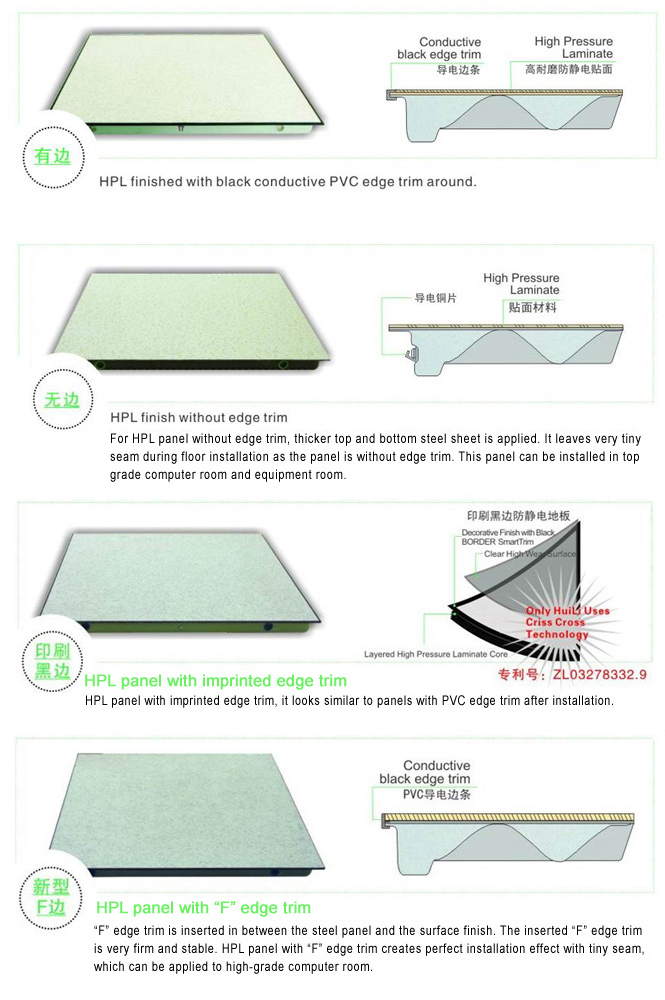

Antistatic Raised Access Floor in All Steel ( with Edge Trim / Without Edge Trim )

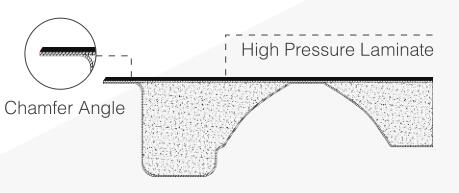

Panel Without Edge Trim

Panel without edge trim, it leaves wery tiny seam during floor installation as the panel is without edge trim, the panel can be applied to high-computer room and place where requirement on antistatic or many wires.

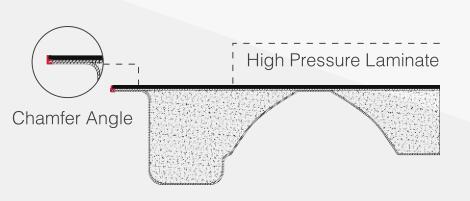

Panel With Edge Trim

“F” edge trim is instead in between the steel panel and the surface finish. The inserted“F” edge trim is very firm and stable. Panel with “F” edge trim creates perfect installation effect with tiny seam, which can be applied to high-computers room and place where requirement on antistatic or many wires.

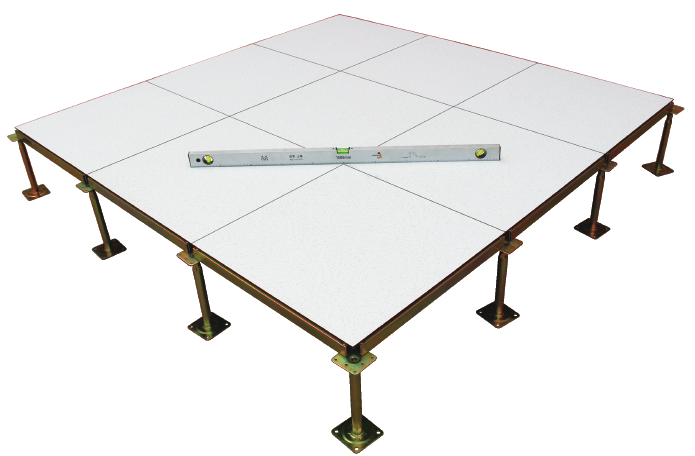

Product:Anti-static steel raised floor

Product size:600×600×35mm

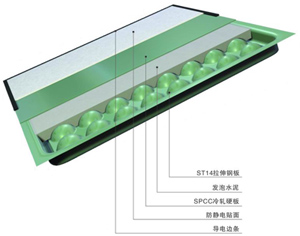

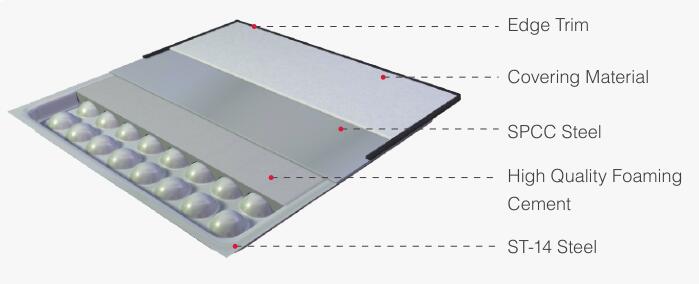

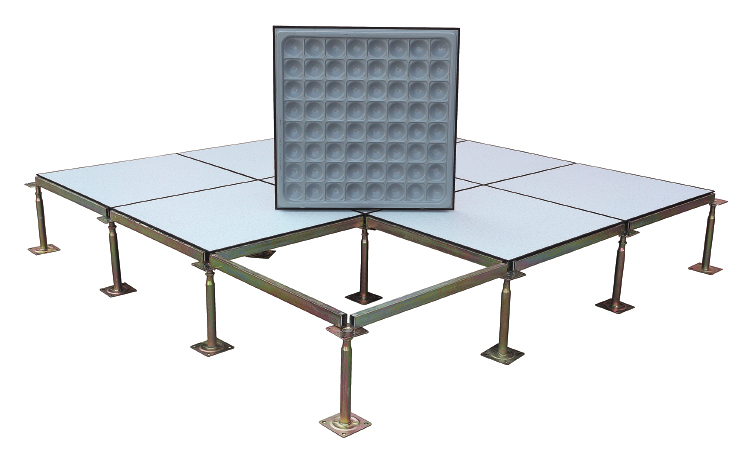

Structure:

The panel is made of high quality deep stretch coil steel sheet and SPCC steel sheet, which is punched, spot-welded and finally coated with epoxy powder. The panel is filled withfoamed cement inside. After being kept for a period of time, if forms a stable support structure. The top steel sheet of the panel is stuck with anti-wear and antistatic HPL. Anti-static steel raised floor is installed with stringer and pedestal.

Application:

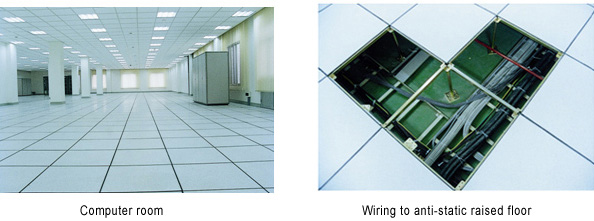

Anti-static raised floor is widely used in computer room, communication center, data center, power station, microwave communication station, satellite ground station, mobile communication center, program-controlled telephone exchange center, radio and television editorial room and other professional editorial command room. And it is also installed in production workshop of integrated circuits, computer, telecommunications, electronics and optical equipment. It can be seen in hospital operation room and electronic imaging examination rooms and other electrostatic sensitive industry as military, petrochemical and other inflammable places.

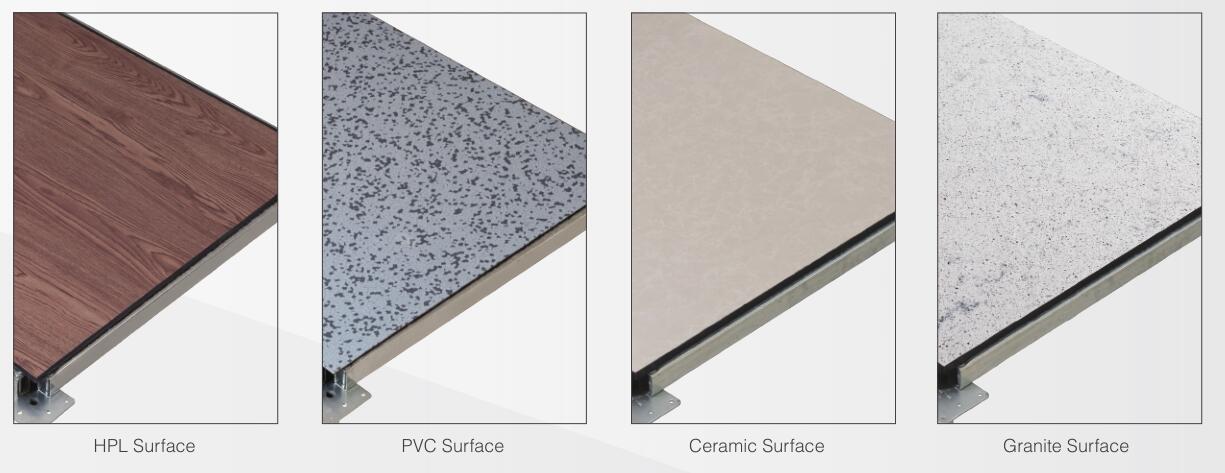

Main forms:

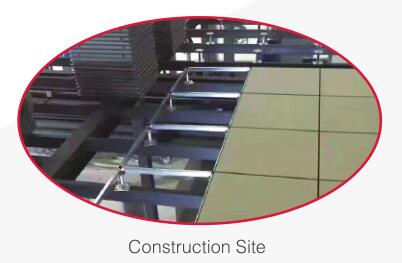

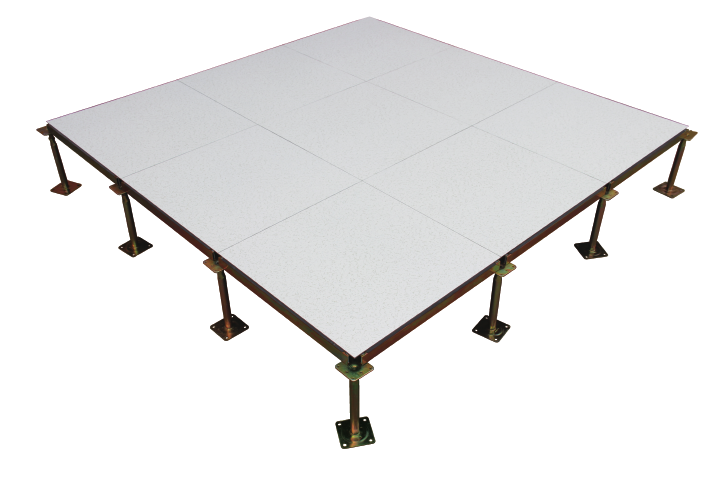

Anti-static steel raised floor project:

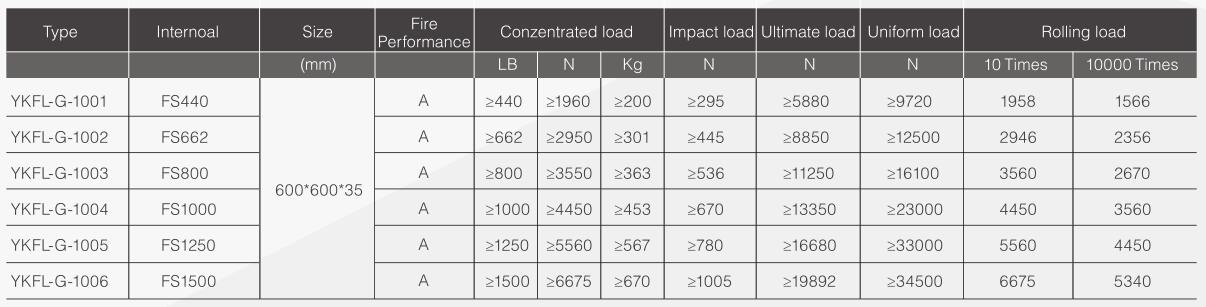

Specifications:
