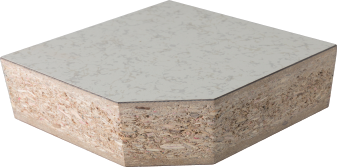

Woodcore access floor comsists of high-density (720Kg/m³ chipboard, Galvanized steel sheet/ aluminum foil bonded to the bottom of the chipboard. HPL or PVC is stuck to the top of the chipboard, four edges are sealed with PVC edging strip.
Characteristics
1. Prevent static validly; fireproof class B2; antiskid, soundproof, dust proof, antisoil;
2. Strong wearability, non-bubble, no degumming;
3. Strong design ability, pressurization;
4. Appearance is beautiful;
5. Easy to fix, convenient for wires.

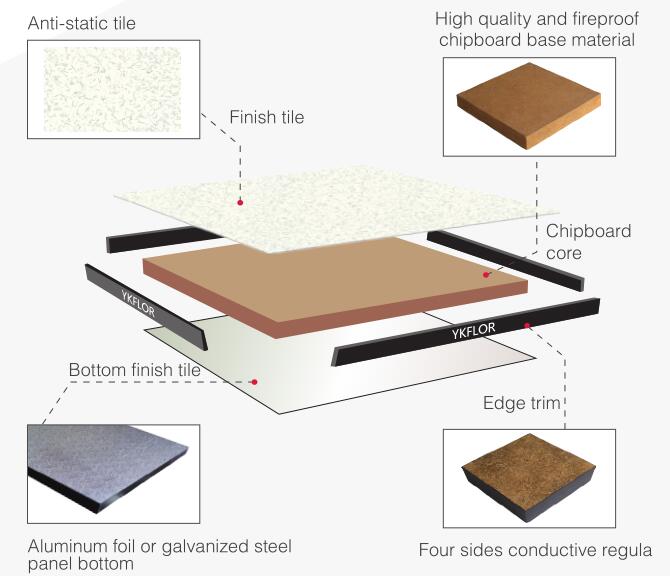

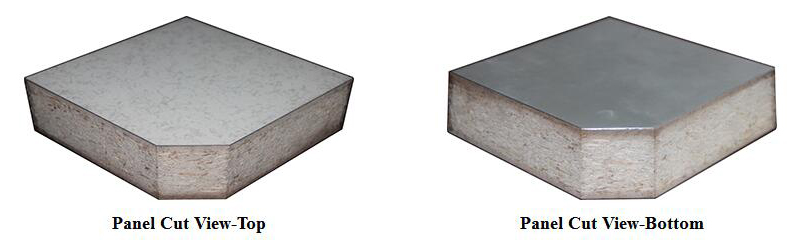

Cross-section Drawn
Technical Specification
Description:
Panel- High density chipboard in the middle, top HPL/ PVC laminates, bottom with galvanized steel sheet or aluminum foil,PVC/ABS around 4 edges of the panel.

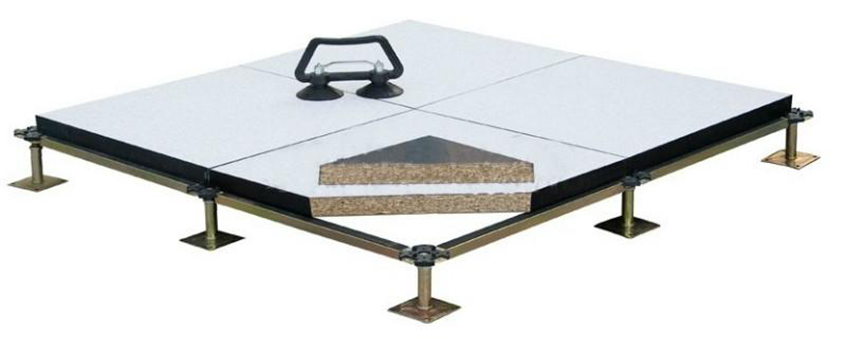

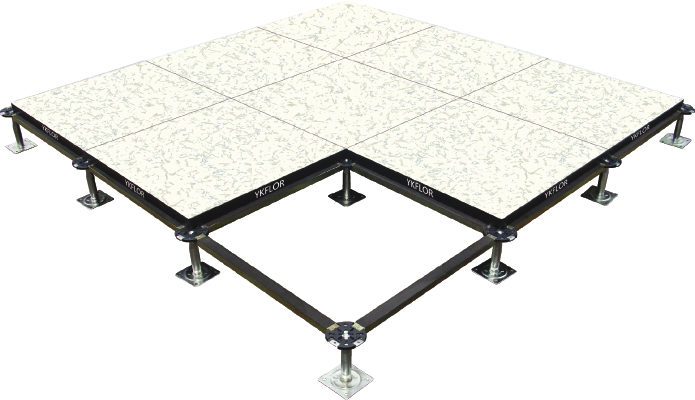

Accessories -die casting steel structure pedestal, with gasket, the height is adjustable, can be from 70mm --1500mm , with square tube stringer steady connect the system.
Feature:
1.Prevent static validly, fireproof class B2,antiskid,soundproof,dustproof,anti-soil.
2.Strong wearability, non-bubble, no-degumming.
3.Strong design ability, pressurization.
4.Beautiful appearance.
5.Easy to fix, convenient for wires.
Application:
Fangsheng wood core raised floor is widely used in telecommunications, electronics, microelectronics, pharmaceutical and other industry program-control room, computer room, power station, factory clean room and other anti-static requiring places.

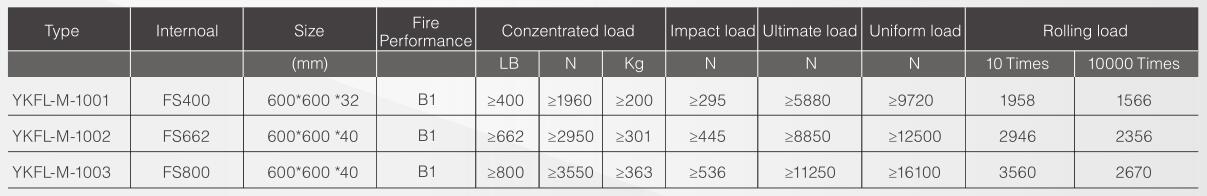

Specification:
Type | Size | Concentrated Load | Rolling Load | Ultimate Load | Uniform Load | System resistance | |
mm | N | KG | N | N | N/M 2 | ||
FS800 | 600× 600× 30 | ≥3550 | ≥ 363 | ≥536 | ≥ 10650 | ≥ 16500 | Conductive: R< 10 6 Ω Static dissipative: 10 6 -10 10 Ω |
Product Structure:
Woodcore access floor consists of highdensity (720Kg/m3) chipboard. Galvanized steel sheet is bonded to the bottom of the chipboard. HPL, PVC or Ceramic is stuck to the top of the chipboard, four edges are sealed with PVC edge trims.
Product Feature:
1. Water-proof, fire-proof, anti-corrosive and sound insulation.
2. High dimension accuracy and excellent interchangeability.
3. Good loading performance.
4. Elaborated made and good decorative effect.
Application:
Anti-static woodcore floor is widely used in places where have high requirement of anti-static,loading and finished apperance, like: bank,communication equipment room, intelligent office and so on.
Loading Chart:
Type | Size | Concentrated Load | Rolling Load | Ultimated Load | Uniform Load | Fire Protection Performance | System resistance | |
mm | LB | KG | KG | KG | KG/M2 | |||
Incombustible ASTM E84-01: Flame Spread:0 Smoke Density:0 |
106-1010Ω Static dissipative | |||||||
Medium Duty | 600×600×30 | ≥800 | ≥363 | ≥250 | ≥1089 | ≥1684 | ||
Heavy Duty | 600×600×40 | ≥1000 | ≥454 | ≥272 | ≥1362 | ≥2347 |
