Introduction Of Products
Wood Core production technology is same as Steel Encased Calcium Sulphate network raised access floor, base material is high strength chipboard. Wide range of the application all kinds of top grade office.

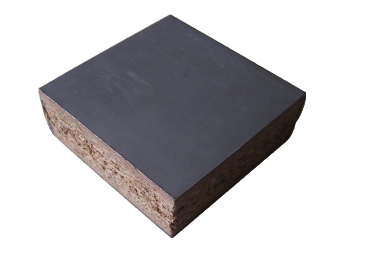

Cross-section Drawn
Characteristics
1. High loading capacity and light weight,sound-proofing and good sealing;
2. Elegant appearance,the core encapsulated by galvanized steel;
3. Panels corner could with or without lock holes.
Technical Specification
Product Structure:
Woodcore access floor consists of high-density (720Kg/m3) chipboard. The panel is fully encapsulated by A grade Galvanized Steel Sheet.
Product Feature:
1. Light weight, small noise and comfort when walking on.
2. Dimension accuracy with nice interchangeability.
3. Strong loading capacity..
4. Fire resistance B2.
5. Great anti-static performance.
Application:
OA woodcore raised access floor is widely used in places where have high requirement of anti-static,loading and finished apperance, like: bank,communication equipment room, intelligent office and so on.

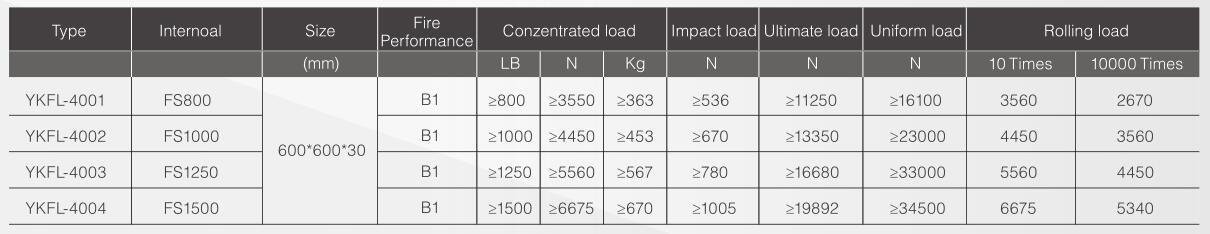

Loading Chart:
Type | Size | Concentrated Load | Rolling Load | Ultimated Load | Uniform Load | Fire Protection Performance | |
mm | LB | KG | KG | KG | KG/M2 | ||
Light Duty | 600×600×26 | ≥700 | ≥318 | ≥204 | ≥954 | ≥1134 |
Incombustible ASTM E84-01: Flame Spread:0 Smoke Density:0 |
